parent class for computing iterative deconvolution schemes More...

#include <IterativeDeconvolve.h>

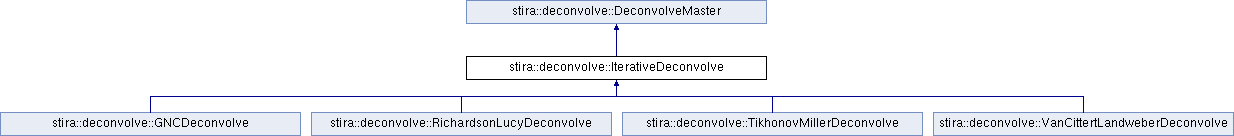

Inheritance diagram for stira::deconvolve::IterativeDeconvolve:

Public Member Functions
void	SetLambda (double lambda)
	sets regularization parameter lambda

double	GetLambda ()
	gets regularization parameter lambda

void	SetStepSize (double stepSize)
	sets step size

double	GetStepSize ()
	gets step size

int	GetMaximumNrOfIterations ()
	gets the maximum number of iterations

void	SetMaximumNrOfIterations (int nrIter)
	sets the maximum number of iterations More...

Public Member Functions inherited from stira::deconvolve::DeconvolveMaster
virtual bool	Run ()=0
	Runs the actual restoration algorithm After completion, get the result with GetRestoredImage()

Image *	GetDegradedImage ()
	Gets the degraded input image.

void	SetDegradedImage (Image *pDegradedImage)
	sets the degraded image to restore More...

Image *	GetPSF ()
	gets the Point Spread Function (PSF) The PSF is a model of the blur; it is how every single point is imaged in the degraded image. For an ideal image, it would be a delta function; in reality, it is mostly a certain spot.

void	SetPSF (Image *pPSF)
	sets the Point Spread Function (PSF) More...

Image *	GetRestoredImage ()
	gets the result after running the deconvolution

void	SetSigmaNoise (double sigma)
	sets the noise level More...

double	GetSigmaNoise ()
	gets the noise level

virtual bool	IsReadyToRun ()=0
	checks if all conditions are fulfilled for this deconvolution method

Protected Member Functions
	IterativeDeconvolve (Image *pDegradedImage, int maxNrOfIterations=20)
	constructor Protected constructor; should be called by a child class More...

	IterativeDeconvolve (Image pDegradedImage, Image pPSF, int maxNrOfIterations=20)
	constructor Protected constructor; should be called by a child class More...

	~IterativeDeconvolve ()
	destructor

void	Initialize (int maxNrOfIterations)
	initializes all data structures for deconvolution

bool	PrepareCurrentGrids ()
	Prepares grid for restoration Restoration goes per colour band per iteration, so for each step, the pointers mpDegradedGrid, mpLastGrid, mpNewGrid, mpPSFGrid are set here.

virtual bool	RunSingleIterationSingleBand ()=0
	Runs a single iteration on a single colour band of the image Implemented in the child classes.

Protected Member Functions inherited from stira::deconvolve::DeconvolveMaster
	DeconvolveMaster (Image *pDegradedImage)
	constructor Sets degraded input image; PSF is estimated or entered in later stage More...

	DeconvolveMaster (Image pDegradedImage, Image pPSF)
	constructor Sets degraded input image and PSF More...

virtual	~DeconvolveMaster ()
	constructor

bool	AreParentConditionsOK ()
	checks basic conditions are fulfilled for all deconvolution methods

Protected Attributes
Image *	mpLastEstimate
	pointer to the restored image from previous iteration

Image *	mpNewEstimate
	pointer to the restored image from current iteration

double	mLambda
	Regularization parameter.

double	mStepSize
	Step size.

int	mCurrentIterationNr
	number of the current iteration

int	mCurrentBandNr
	number of the current band being retsored

int	mMaximumNrOfIterations
	maximum number of iterations

ArrayGrid< double > *	mpDegradedGrid
	pointer to a band of the degraded image

ArrayGrid< double > *	mpLastGrid
	pointer to a band of the restored image from previous iteration

ArrayGrid< double > *	mpNewGrid
	pointer to a band of the restored image from current iteration

ArrayGrid< double > *	mpPSFGrid
	pointer to a band of the Point Spread Function

Protected Attributes inherited from stira::deconvolve::DeconvolveMaster
Image *	mpDegradedImage
	degraded input image

Image *	mpRestoredImage
	restored image for output

Image *	mpPSF
	image containing the Point Spread Function

double	mSigmaNoise
	sigma of the noise

Detailed Description

parent class for computing iterative deconvolution schemes

Constructor & Destructor Documentation

stira::deconvolve::IterativeDeconvolve::IterativeDeconvolve	(	Image *	pDegradedImage,
		int	maxNrOfIterations = `20`
	)

protected

constructor Protected constructor; should be called by a child class

Parameters

pDegradedImage	the degraded input image for restoration
maxNrOfIterations	the maximum number of iterations

stira::deconvolve::IterativeDeconvolve::IterativeDeconvolve	(	Image *	pDegradedImage,
		Image *	pPSF,
		int	maxNrOfIterations = `20`
	)

protected

constructor Protected constructor; should be called by a child class

Parameters

pDegradedImage	the degraded input image for restoration
pPSF	the Point Spread Function
maxNrOfIterations	the maximum number of iterations

void stira::deconvolve::IterativeDeconvolve::SetMaximumNrOfIterations ( int nrIter )

sets the maximum number of iterations

Parameters

nrIter the maximum number of iterations

The documentation for this class was generated from the following files:
